Tail Light 36V48V60V64V Led Ebike Rear light Electric Scooter rear light brake light and turn light working without a relay

36V48V60V64V Led Ebike Rear light Electric Scooter rear light brake light and turn light

Nice bright flashlight. Turns do not require a relay, when voltage is applied, it flashes itself.

Model A: Rear light + brake lamp function + flashless self flashing steering lamp

Voltage : 36v-64v general

It has its own flash rate of about 100 times / minute.The flasher of the original car is generally about 80 times / minute. For those who want to flash with the same flash frequency as the original vehicle, do not buy A! Please buy model C with front led turn signal. Vehicles with front tungsten bulb turn signal lamps must be replaced with LED special flashers before they can use our tail lamps.

Model B: Rear light + brake light function

Voltage :36v-64v general No turn signal function

The steering position lights up with the night light

Wiring diagram :

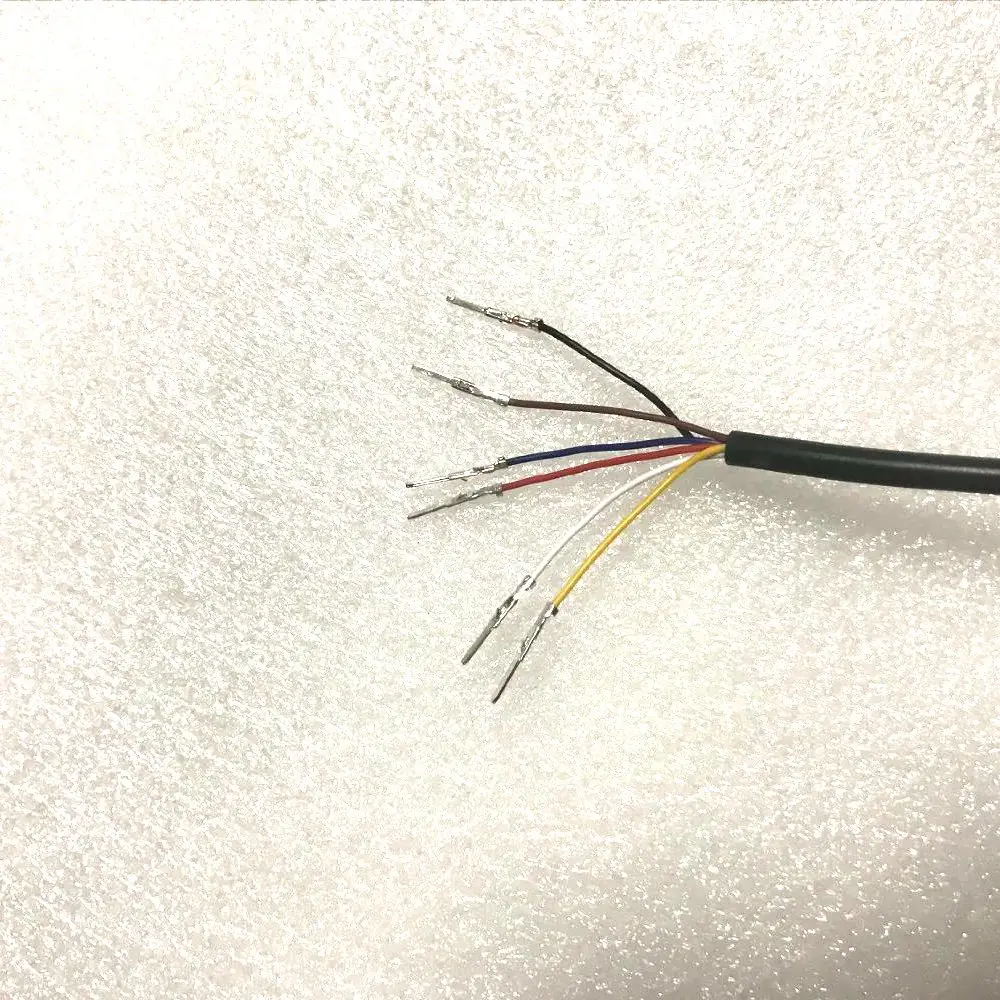

Model A:
brake light rear light and turn light
Brake light :
Black :-
Green or brown :+
Rear light :
White :-
Red:+
Turn light
Blue:turn right +
Yellow:turn left +

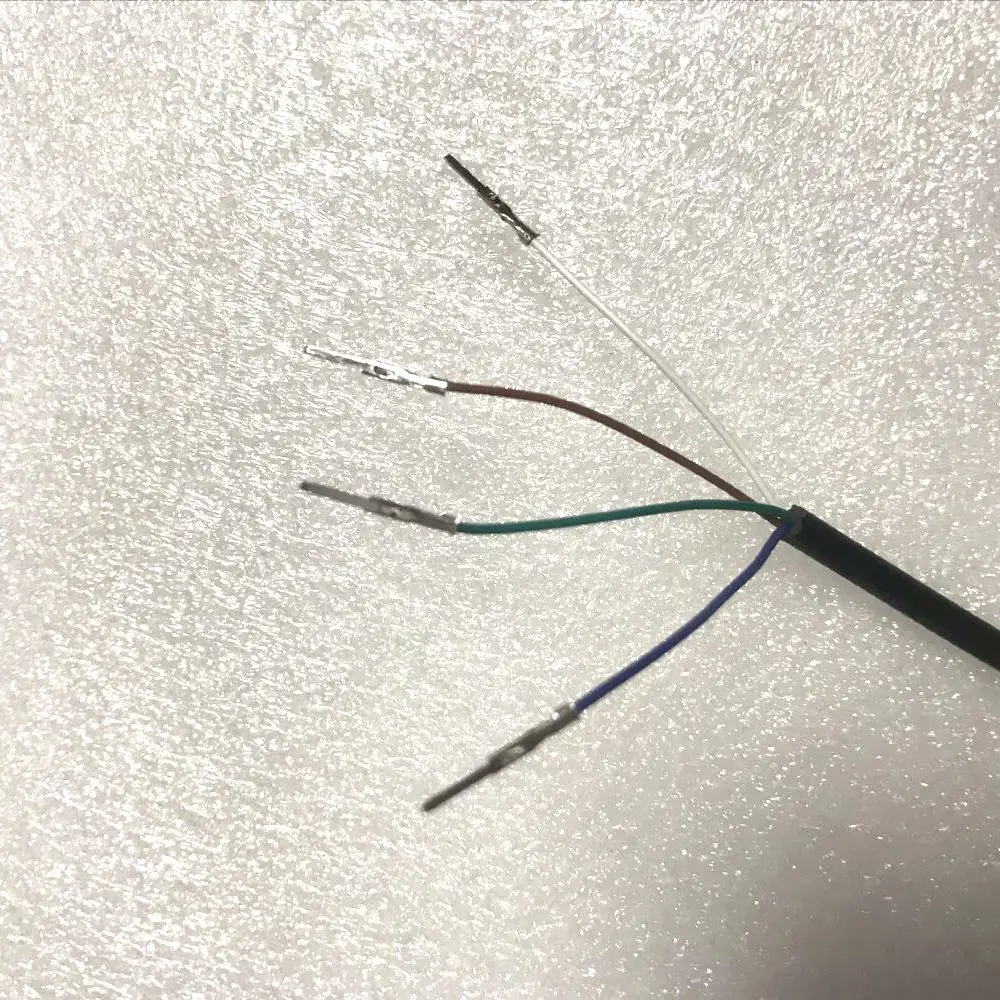

Model B:
brake light rear light:
Rear light : blue- brown +
Brake light:white – green+
