Attention

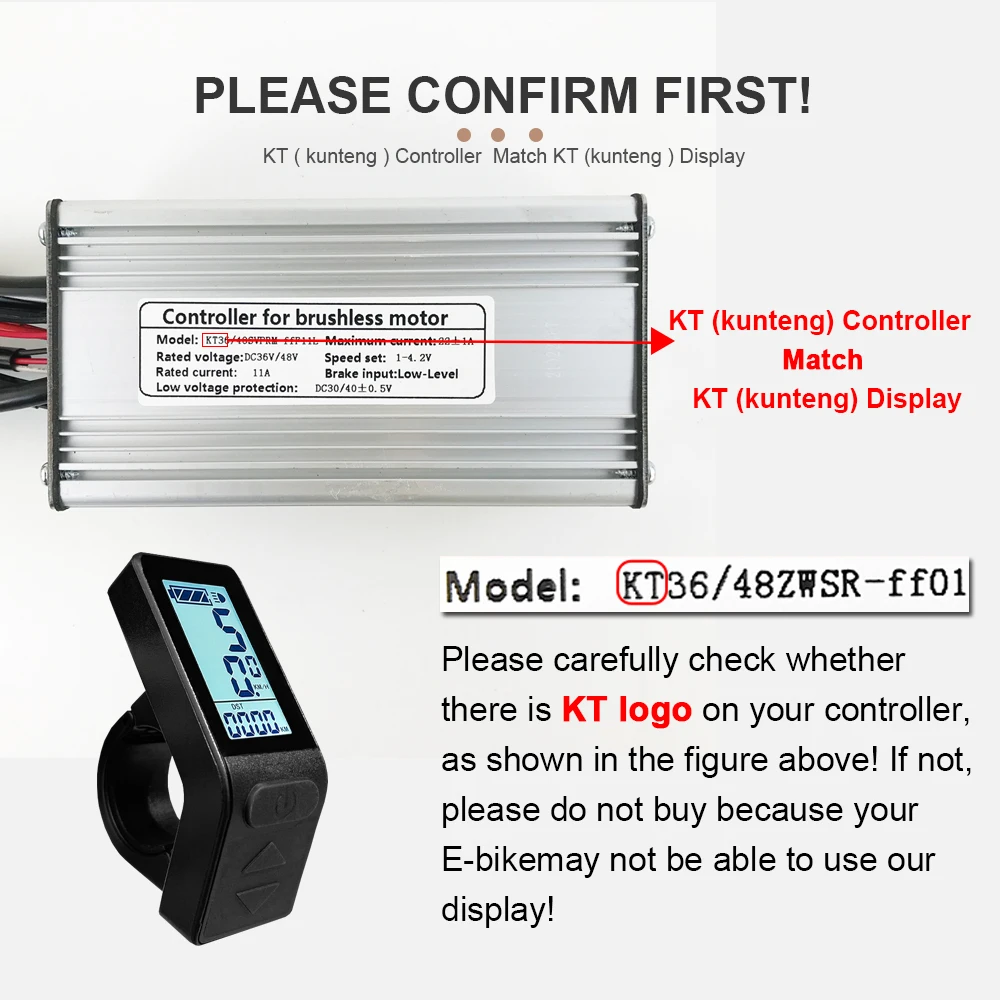

② LCD4 WP cable length about 25cm.If you want to connect the controller,you need a 1to4 cable.

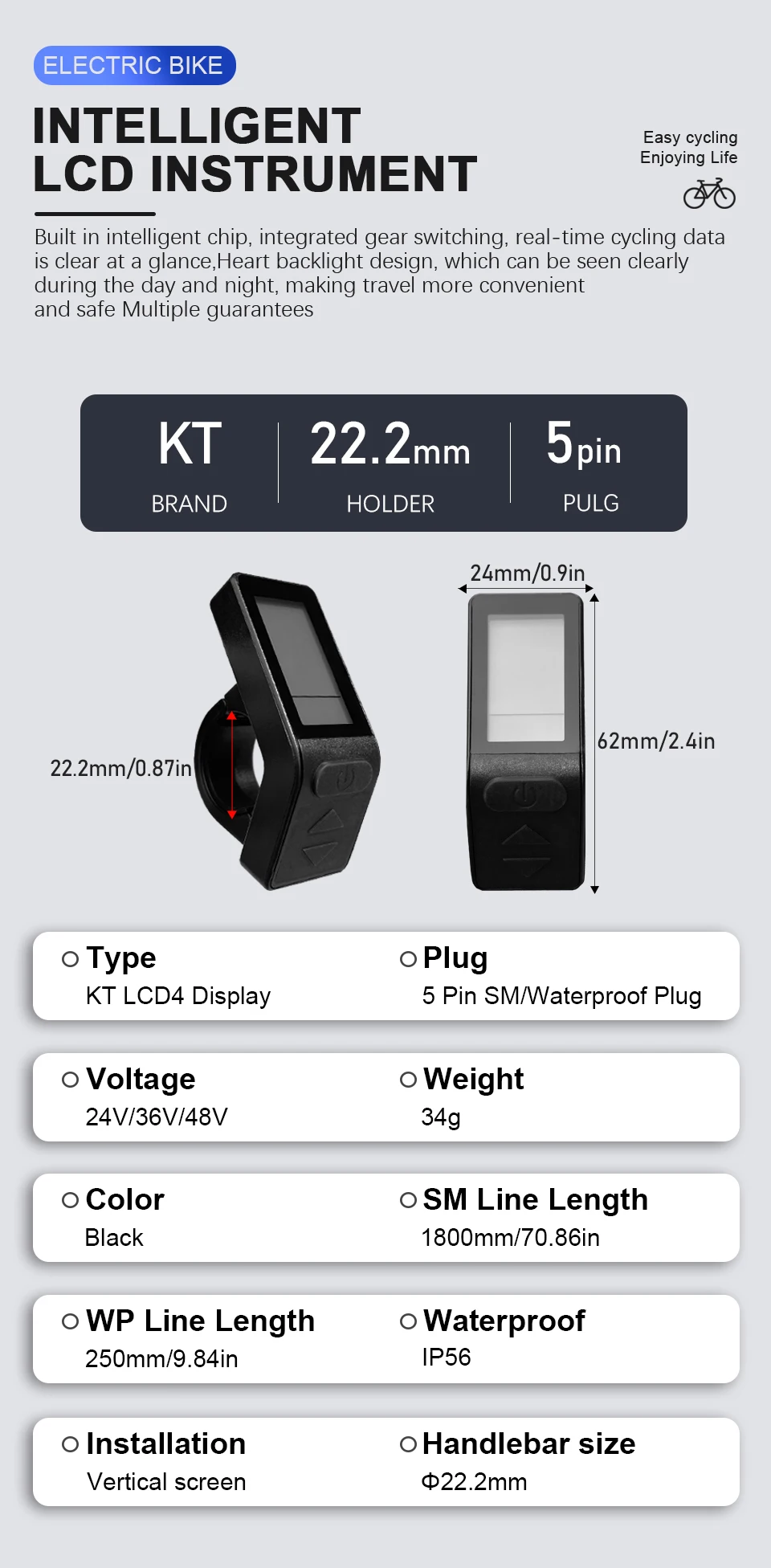

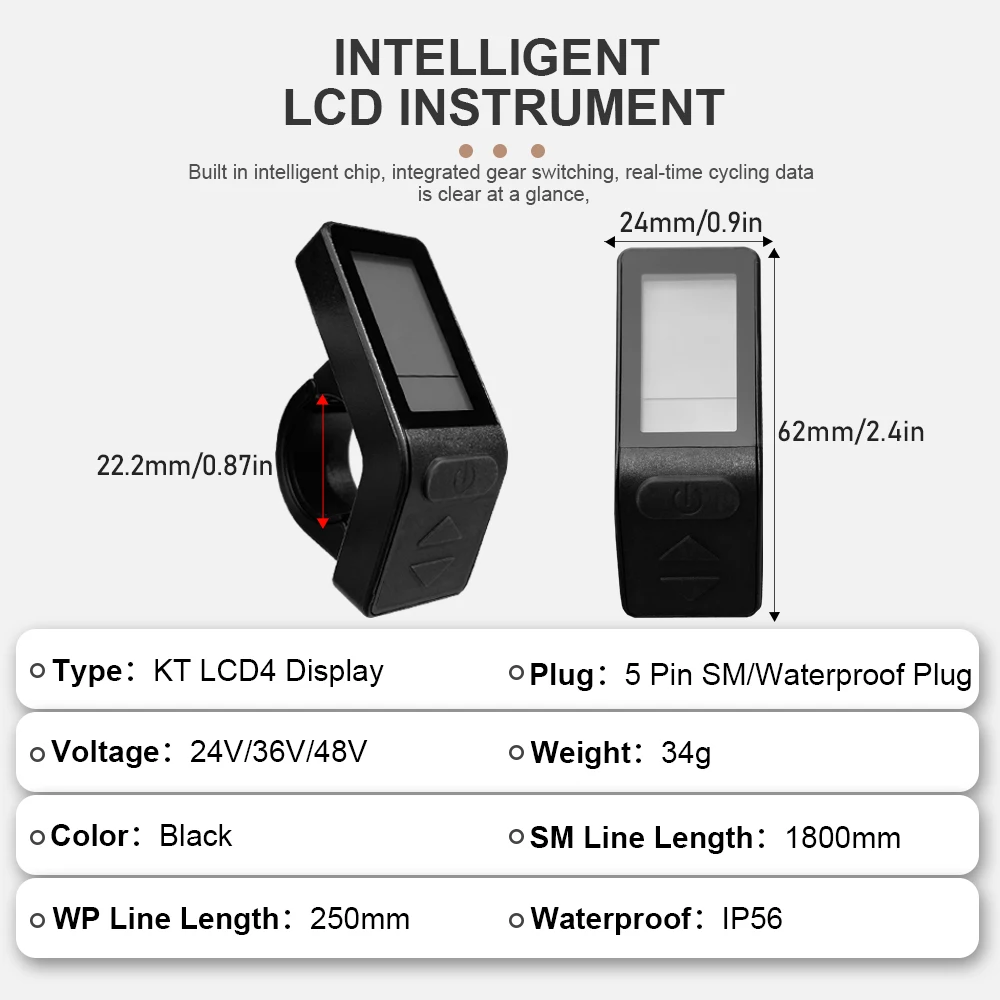

Parameter

Voltage: 24V,36V,48V

Color: Black

Weight: 250g

Handlebar size for holding: 22.2mm

Cable length: About 25cm(WP), About 180cm (SM) including the connector

Plug: 5 Pin SM/WP Connector

2、Intelligent power:a true reflection of the battery charge, real-time recording of the power consumption to ensure riding  mileage;

3、Stalls setting:multi-gear switch and automatic save of the power-assist gear, and it can restore power-off stall state      when turned on;

4、Parameter setting:with a number of user parameter setting functions, motor parameters, velocity measurement            parameters, speed-limit parameters, power parameters, power-assist control parameters, the minimumcontroller

voltage and maximum current parameters and other operating models for settings adjustment ;

5、Data view:Users can view historical driving data and clear accordingly, view single or cumulative riding time, riding        mileage, maximum speed and average speed of single riding;

6、Vehicle boosting:With 6Km/h power-assisting functions, the boost logo flashes during boosting, and riders can use it    when driving the vehicle and the vehicle driving is labor-saving and easy;

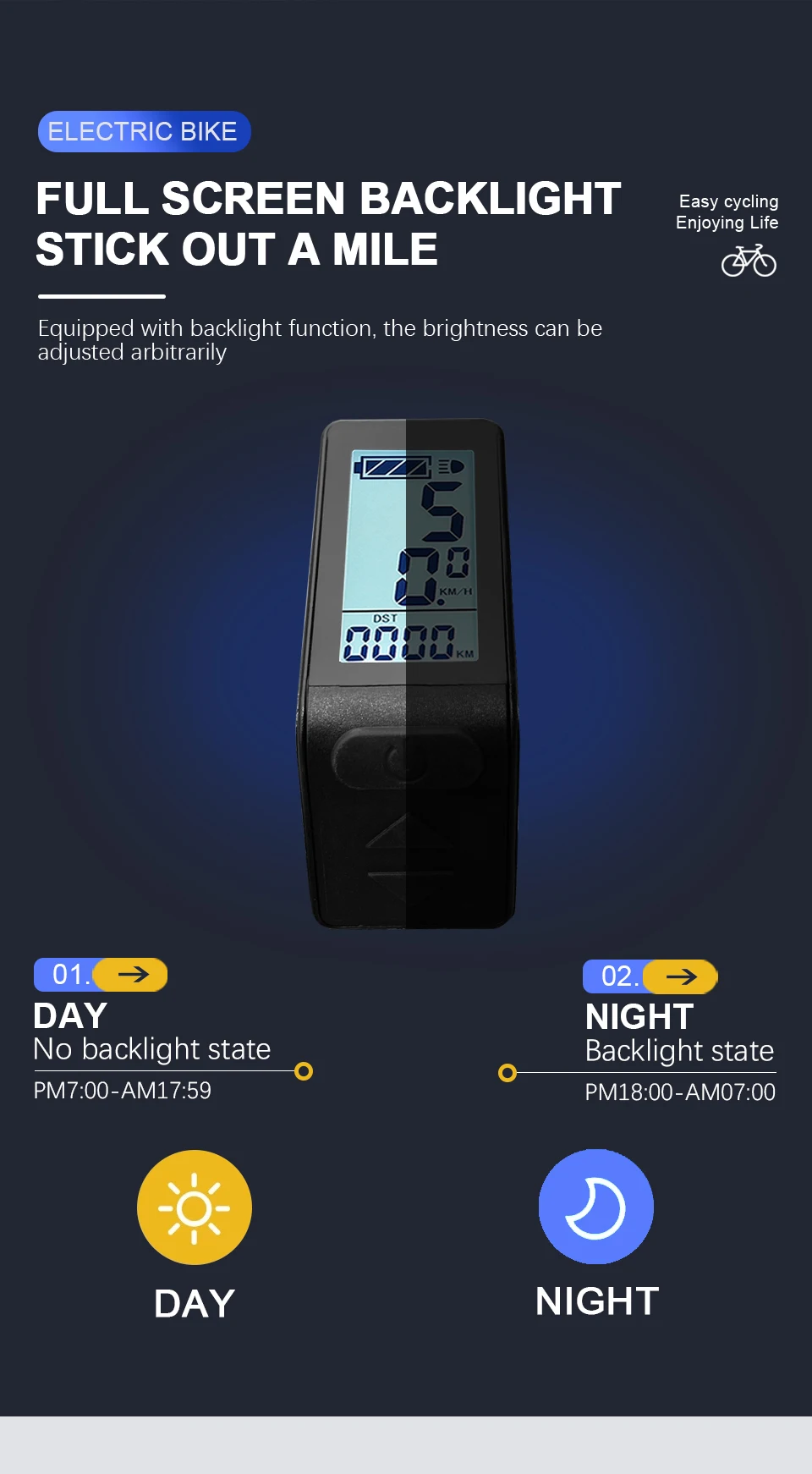

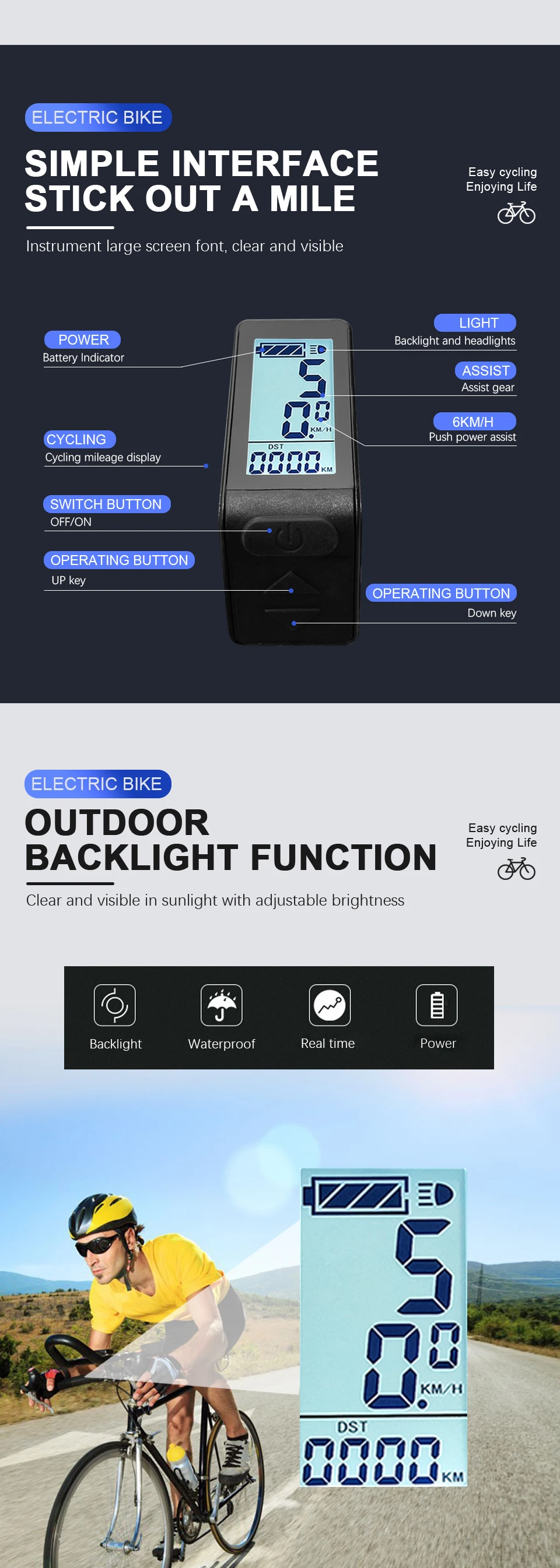

7、Night driving:With the functions of LCD backlit display and headlight switch control, instrument backlighting and headlights can be turned on during driving at night;

8、Password setting:With three-bit of power-on password setting;

9、Automatically prompt:For the appeared failure of the vehicle, it can prompt different fault codes for easy inspection    and  maintenance of vehicle. With a temperature display for motor operation and it is to achieve the ultra-temperature alarm and motor protection;

10、Use five-line of digital communication, the instrument has good compatibility and interchangeability, different instruments can be conducted the data exchanges and parameters copy directly;

11、Host part and operation buttons of the meter use sub-structure design, making the operation to be more reasonable      and convenient;

12、Supply voltage of 24V/36V/48V can be automatically identified and compatible;

13、Black housing

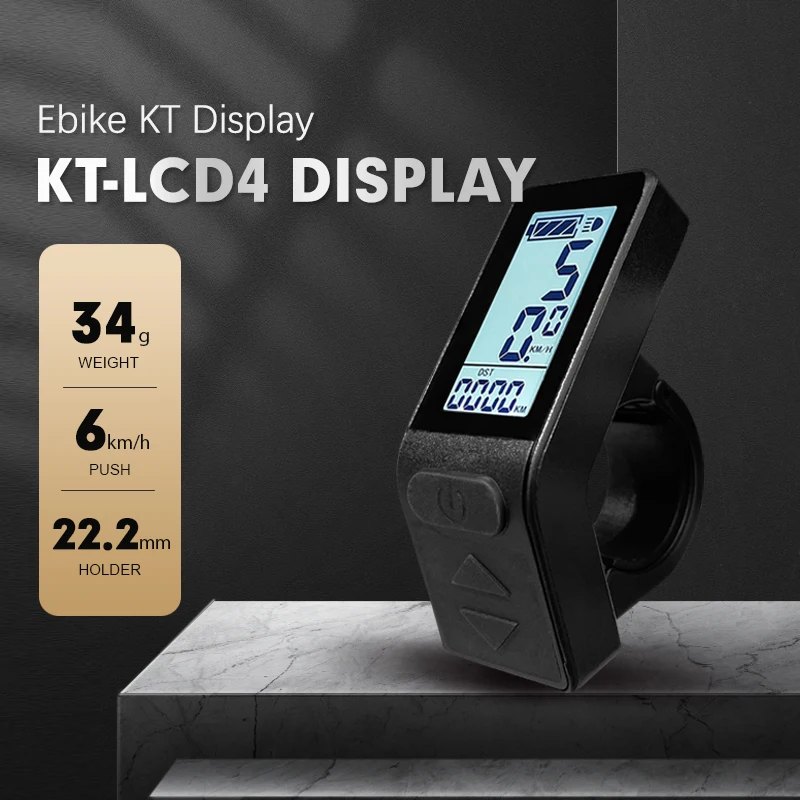

1、KT LCD4 display
