Description
- High-concerned chemical: None
- Type: Display
- Brand Name: IMEIQI
- Origin: Mainland China

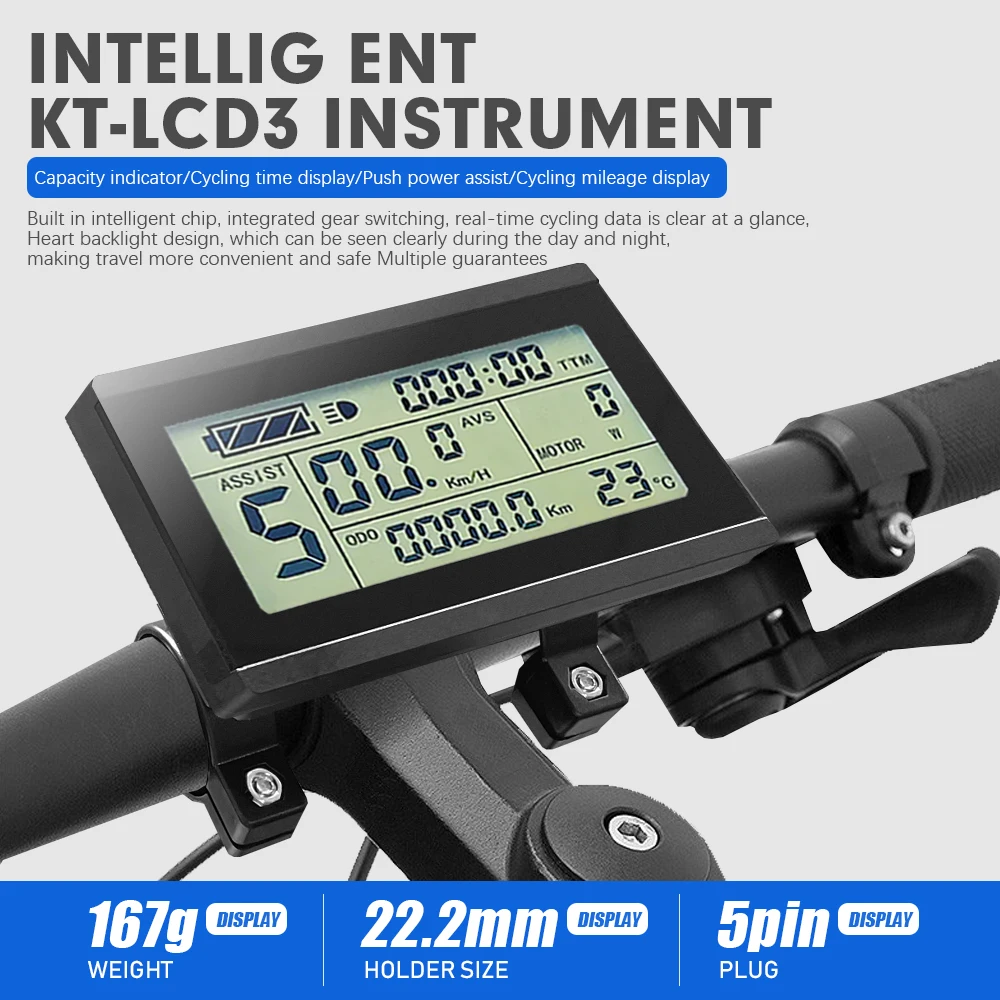

- Type: KT-LCD3 Display
- Brand Name: KT display
- Voltage: 24V,36V,48V,52V,60V,72V
- Weight: 167g
- Plug: 5 Pin Connector
- Handlebar size for holding: 22.2mm
- Color: Black
- Feature: LCD Display waterproof or SM connector
- Fit For: Ebike hub Motor Kit
- Waterproof: Yes IP56

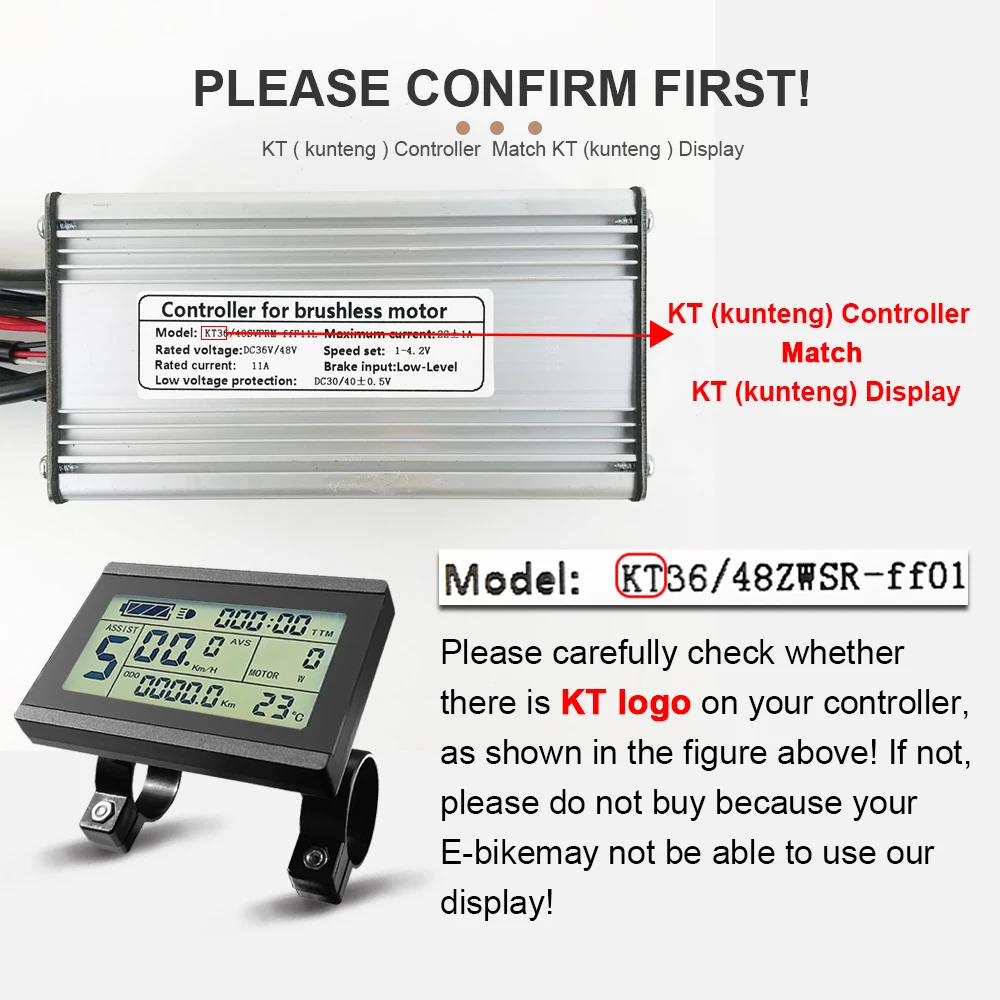

- Compatible with: Kunteng KT controller

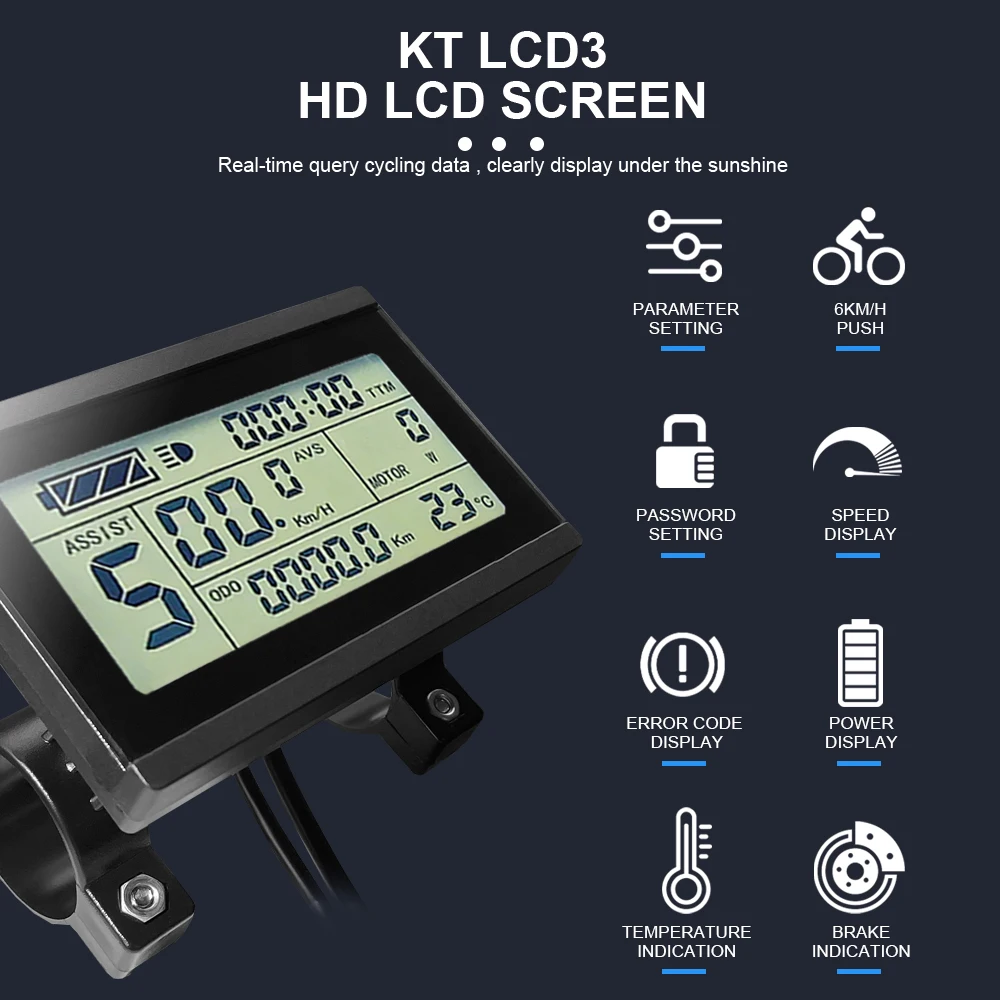

Feature:
1. Single travel time (TM) + total travel time (TTM) real-time km/h or MPH display
2. Single maximum speed (MXS) + single average speed (AVS)
3. One-way distance (DST) + total travel distance (ODO)
4. 6km/h push function, cruise function. Headlights, taillights, optional switches, brake status display
5. Torque sensor analog speed sensor 0-5 level + battery capacity display
6.24V, 36V, 48V compatible.
7. The controller can be reprogrammed through parameter setting.
8. Data reset + parameter copy + fault code display.
9. Display of motor working power (W). And motor working temperature display.
10. The LCD motor overheats alarm. (USB function is optional)
Attention
② LCD3 WP cable length about 25cm.If you want to connect the controller,you need a 1to4 cable.
Parameter
Voltage: 24V,36V,48V，72V
Color: Black
Weight: 250g
Handlebar size for holding: 22.2mm
Cable length: About 25cm(WP), About 180cm (SM) including the connector
Plug: 5 Pin SM/WP Connector
1、KT LCD3 display
